Usage parameters:

Weight: It is very light, about 1.00kg-1.2kg, easy to install and carry, and can be flexibly deployed in various industrial environments.

Power supply: Power support is provided through field connection transmission to ensure stable power support in the industrial field.

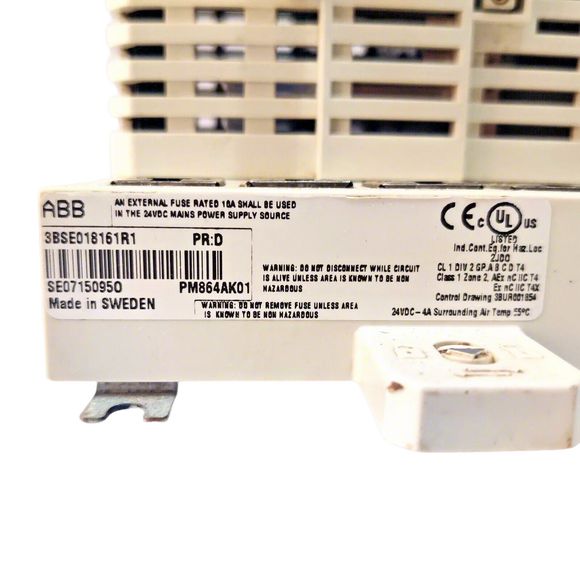

Memory capacity: The structure of PM864AK01 adopts 32Mbyte storage, which can meet the storage needs of a large number of control programs, data and historical records, and maintain stability when executing other system processes.

Interface:

The baseboard has two RJ45 Ethernet ports (CN1 and CN2) for interconnecting the device with the control network to achieve high-speed data communication.

Two RJ45 serial ports COM3 and COM4. COM3 is RS232C with modem control signal, while COM4 is an isolated port connected to the configuration tool, allowing users to set parameters and debug the system.

Product Features:

Power Control Capability: With real-time control of a given process and accurate processing of real-time feedback and dynamic control, automated factories have been established, and PM864AK01 ensures that the system can maintain stable operation even when there are extreme and strict requirements for response time and accuracy in the production process.

Diligence Communication Function: It can support a variety of communication protocols such as Modbus, Profibus, Ethernet, etc. Therefore, data exchange and communication with various devices, sensors, actuators and monitoring systems now become very advantageous, and the entire network structure is greatly simplified, providing greater flexibility in application and scalable to the design itself.

Programmability: It supports a variety of programming languages and development tools, such as ladder diagram (LD), function block diagram (FBD) and structured text (ST) in accordance with the IEC 61131-3 standard. This enables users to specify custom programming according to certain control requirements in order to enable the desired control logic or tasks.

Multitasking: Various control tasks can be performed simultaneously, which can significantly improve system efficiency by managing multiple industrial processes or machines at the same time.

Redundancy function: CPU redundancy support will be extended to all various components: CPU, CEX bus, communication interface, S800 I/O, etc.; therefore, it can effectively prevent single point failures, provide continuous stability of the entire system in the event of a failure, and thus improve the reliability and availability of the entire system.

Safety protection and diagnosis: With the help of safety functions, it can monitor and manage dangerous situations and take necessary safety measures in emergency situations. In addition, it also has a self-diagnosis function that can quickly detect faults that cause alarms; this further supports maintenance personnel to quickly locate problems, thereby improving the operational safety and availability of the system.

Easy to install and maintain: With a unique sliding and locking mechanism, it can be easily installed and removed via DIN rail. In addition, all baseplates have a unique Ethernet address, which provides hardware identification for each CPU, making it convenient for device management.
